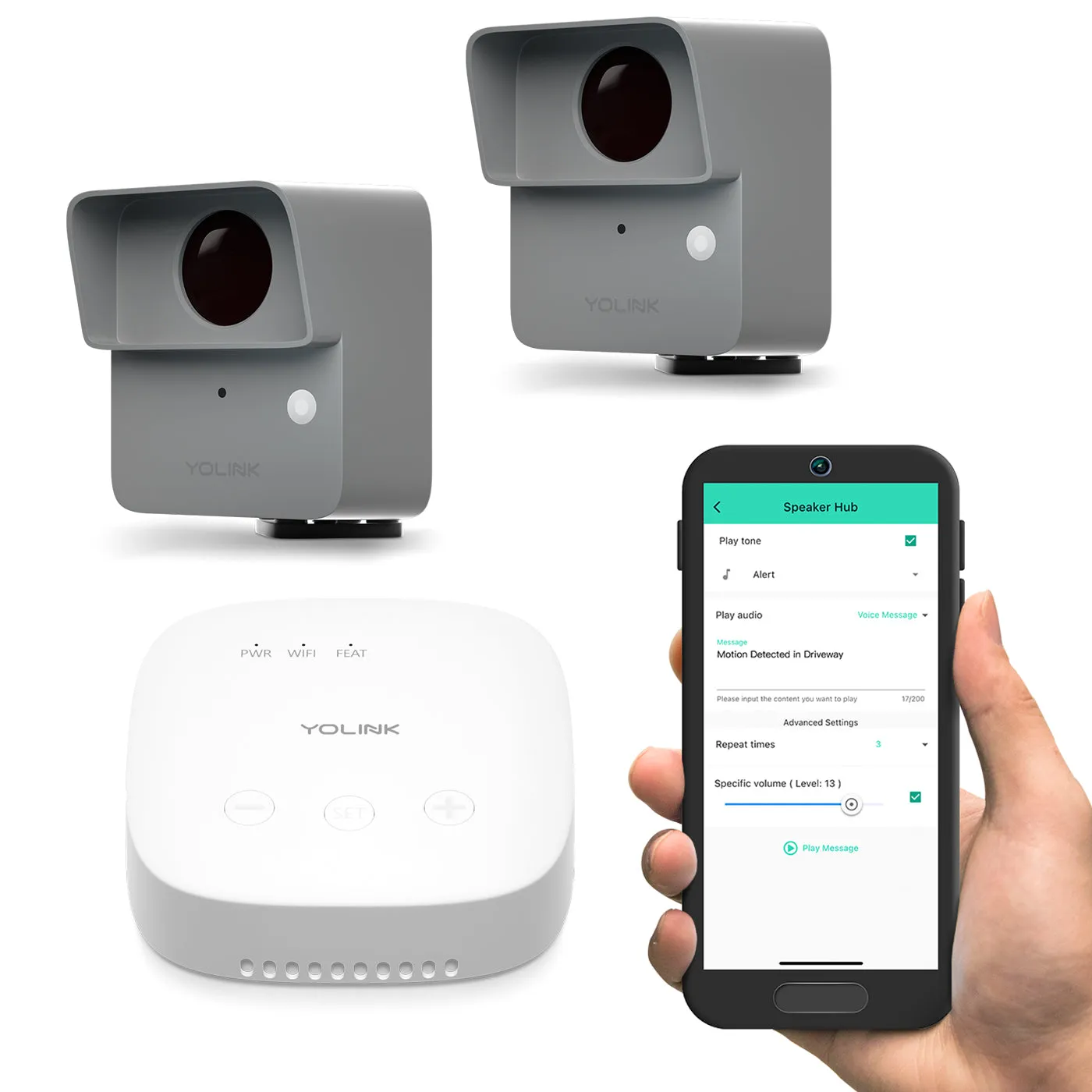

and two starter kit.

Outdoor Motion Sensor

INTRODUCTION:

Smart wireless motion detector, for security and lighting control applications
For Indoor & Outdoor use

FEATURES:

Motion/movement, person or object detection
Real-time motion status displayed on the YoLink app
Wireless; no 120V outlet or wiring required
Wall, pole or driveway installation
IR infrared motion detection technology
Three motion sensitivity levels
Home security and burglar/intrusion detection as well as occupancy sensor applications for lighting and other 120V-powered equipment
YoLink’s industry-leading long range communication and low-power operation

BENEFITS:

Exceptional value; the features you need at a great price
Add safety, security, and convenience to your life with lights that automatically turn on when you enter your home or a room
The sensor may be used to turn off lights and devices or equipment when not needed, potentially lowering your power bill
Lower cost of ownership than other technologies; low-power operation means batteries may last over 2 years, compared to 1 from other brands
Carefree maintenance, with more years between battery replacement
Low-battery alerts give you advanced warning that it is almost time to replace the batteries
Extremely easy and fast installation using the YoLink app with Scan & Play

APPLICATIONS:

Use the YoLink smartphone app to remotely monitor the real-time motion/movement activity status of your home or property
Use app automation settings to respond to the presence of people in your home or property
Security/intrusion detection applications may include activating a Siren Alarm and/or receiving an alert notification on your smartphone when the sensor is activated
Occupancy sensor or presence detection applications include the control of lighting, ceiling and exhaust fans, and other devices or equipment you wish to turn on when the room is occupied or turn off when not – turn bathroom lights off when not in use

SUGGESTED PRODUCTS:

is required. Starting your first YoLink system? Consider one of our
Pair your sensor with the YoLink , for security applications
Pair your sensor with smart plugs/outlets and control lights and other 120V-powered devices/equipment with a YoLink , , , , , or

REQUIREMENTS:

YoLink Hub with an internet connection (wired Ethernet or 2.4GHz Wi-Fi). Refer to the Hub user guide for additional information
Smartphone or tablet running iOS 9 or higher, Android 4.4 or higher
Tools Required: Phillips Screwdriver, Pencil
Installation Difficulty Level: Moderately Easy

TECHNICAL SPECS:

Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor
Motion-sensing area dimensions:

80° (Horizontal)
20° (Vertical)

Optimal Mounting Height: 5-6.5 feet (Wall) or 0-30 feet (Drive Way)
Color: Black
IP Rating: IP67
Dimensions (LxWxH): 2.60 x 2.95 x 2.99 inches
Multi-color status LED (front)
SET button (front)
Power: 2 AA batteries (3V DC)
Environmental:

Operating Temperature Range: -4°F - 122°F (-20°C - 50°C)

PACKAGE CONTENTS:

(1) YoLink Outdoor Motion Sensor
(4) Wall Screws (M4)
(4) Drywall Anchors
(1) Quick Start Guide

PLEASE NOTE:

The sensor is packaged with a quick start guide only. Please download the current

ADDITIONAL RESOURCES:

YoLink Website:
YoLink Facebook page:
YoLink YouTube channel (under construction):
Questions? Need system design assistance? Contact a System Architect via email:

SpeakerHub

The second addition to our family of hubs, the SpeakerHub adds audio functionality to your devices' gateway to the internet. The SpeakerHub is capable of informing and alerting you audibly. This includes not only playing built-in sounds and tones, and MP3 audio files of your choice, but reading out messages in a clear and understandable spoken message via text-to-speech.

Built-in speaker informs you via speech and sounds
The internet gateway for YoLink devices
Connects to the internet via WiFi (2.4GHz, only)
Generates the YoLink wireless network
Required for the YoLink app
Required for full device functionality
USB-powered (via AC adapter)
See also:

SpeakerHub can read out your notifications in clear text-to-speech messages (English language support only at this time). It can play from a library of tones and sounds. It can even play your own MP3 files!

Data Safe & Secure

Powered by Amazon Web Services, your YoLink system is protected by banking-grade security, encryption, redundancies and back-ups. All YoLink communications are two-way encrypted.

No WiFi Worries!

Your YoLink devices do not rely on WiFi, they instead communicate using the LoRa-based (long-range & low-power) wireless network generated by your Hub. Your YoLink devices do not need WiFi, which may have a weak signal or may not be available where it is needed. Typical WiFi-based smart devices can bog down your WiFi, creating traffic jams and poor performance, and each WiFi device is a potential security risk, a potential back door for hackers.

No WiFi, No Internet, No Power - No Problem!

Thanks to our unique Control-D2D device-to-device pairing, you can easily create links between one device and up to 128 other devices. Once a pairing relationship is set, the devices will respond accordingly, even if the WiFi or internet is down and even if the power* is out! This is perfect for critical operations, such as water leak detection and automatic water shut-off.

*Battery-powered devices only or AC-powered devices on UPS or emergency power.

Applications

SpeakerHub can be used with one or more of our , to create a customized driveway alert system. With our smart In-Wall Switches, exterior lighting, flood lights, etcetera, can be activated as well
When used with our , be audibly alerted when the laundry is finished
When used with our be audibly informed when a door is unlocked and by whom
SpeakerHub has many applications for assisting those with vision loss or impairment.
In addition to YoLink system-related messages, Alexa and IFTTT can be used to play messages on the SpeakerHub, not related to the YoLink system
SpeakerHub has many applications in elder care, for example. A system of motion sensors and door sensors can be used to track an individual's activity in the home, as well as based on time of day. With door and/or motion sensors, SpeakerHub can help by playing messages such as "Dad, it's not time to get out of bed yet, please go back to bed" (uploading of your custom audio files is coming soon)
Alexa can trigger your custom messages played by SpeakerHub. This may be desirable in locations where an Alexa speaker is not practical, possible (no WiFi), or acceptable (keep in mind, SpeakerHub does not have a microphone and can not listen)

For more information, please visit the .
